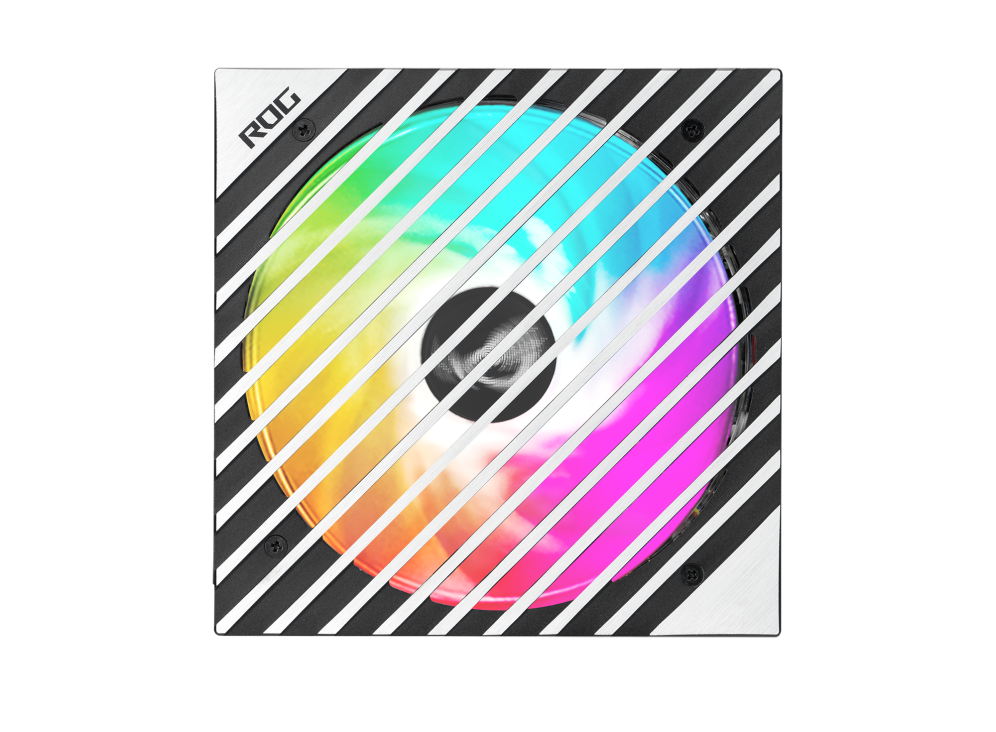

ASUS ROG Loki 850P 850w SFX-L Gaming ATX3.0 PCIe5.0 80 plus Platinum Fully Modular
ASUS ROG Loki 850P 850w SFX-L Gaming ATX3.0 PCIe5.0 80 plus Platinum Fully Modular
TAGS: 80 plus platinum, Atx3.0, Sfx
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
-
Axial-Tech Cooling
120mm fan with PWM control for low noise and thermals kept in check
-
Compact Form Factor
SFX-L : 125 x 125 x 63.5 mm
-
PCIe Gen 5.0 Ready
16-pin cable included to pipe up to 600W power to PCIe 5.0 graphics cards
-
Future Ready
Tighter voltage and current regulation
-
Lambda A Certification
Certified low noise levels, below 25 dB
-
80 PLUS Platinum
CertifiedUp to 92% efficient for low heat and noise, and increased reliability
-
-
ARGB-Illuminated Fan & Aura Sync
Ready to synchronize lighting effects across your gaming setup
Tech Spec
Intel Form Factor
SFX-LPFC Type
Active PFCATX Standard
ATX 3.0Dimensions
125 x 125 x 63.5 mmEfficiency
80Plus PlatinumProtection Features
OPP/OVP/UVP/SCP/OCP/OTPHazardous Materials
ROHSAC Input Range
100-240VacDC Output Voltage
+3.3V +5V +12V -12V +5VsbMaximum Load
20A 20A 70.8A 0.8A 2.5ACombined Load
110W 110W 850W 9.6W 12.5WTotal Output
850WCable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1Weight
1.815kg (single PSU)AURA SYNC
ARGBCybenetics Noise Level Certification
A0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
