ASUS

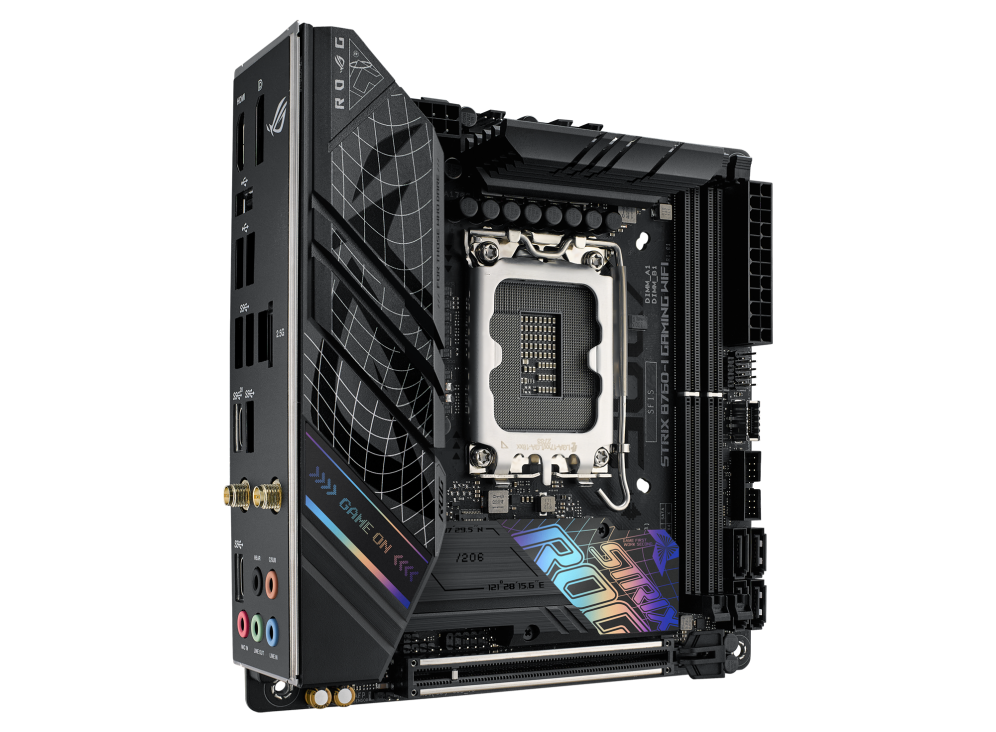

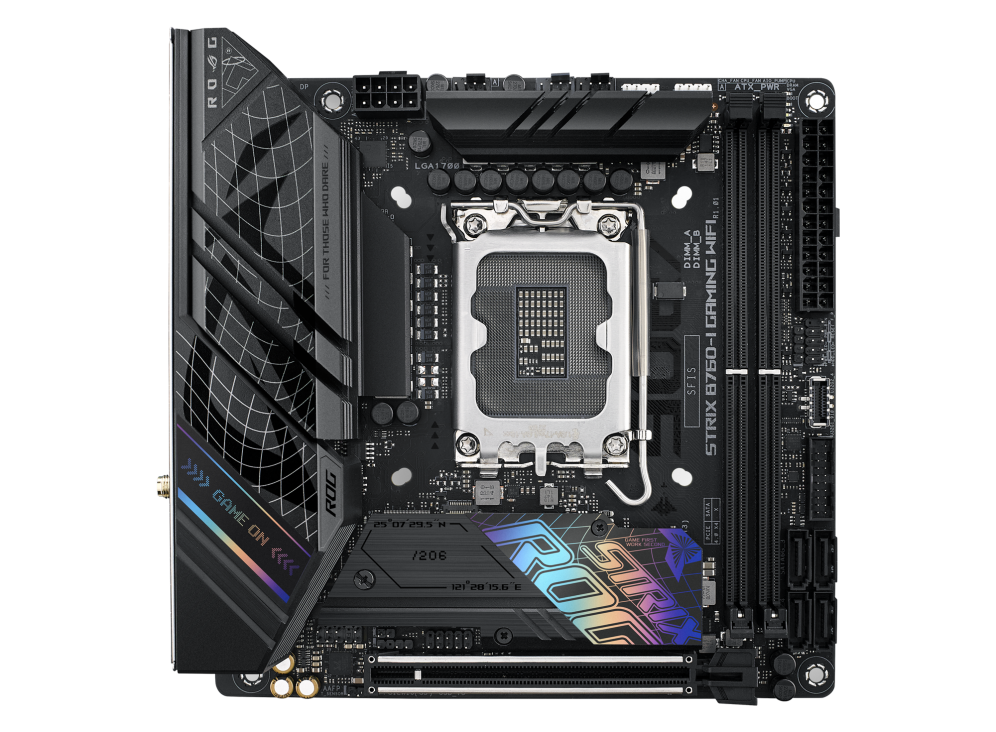

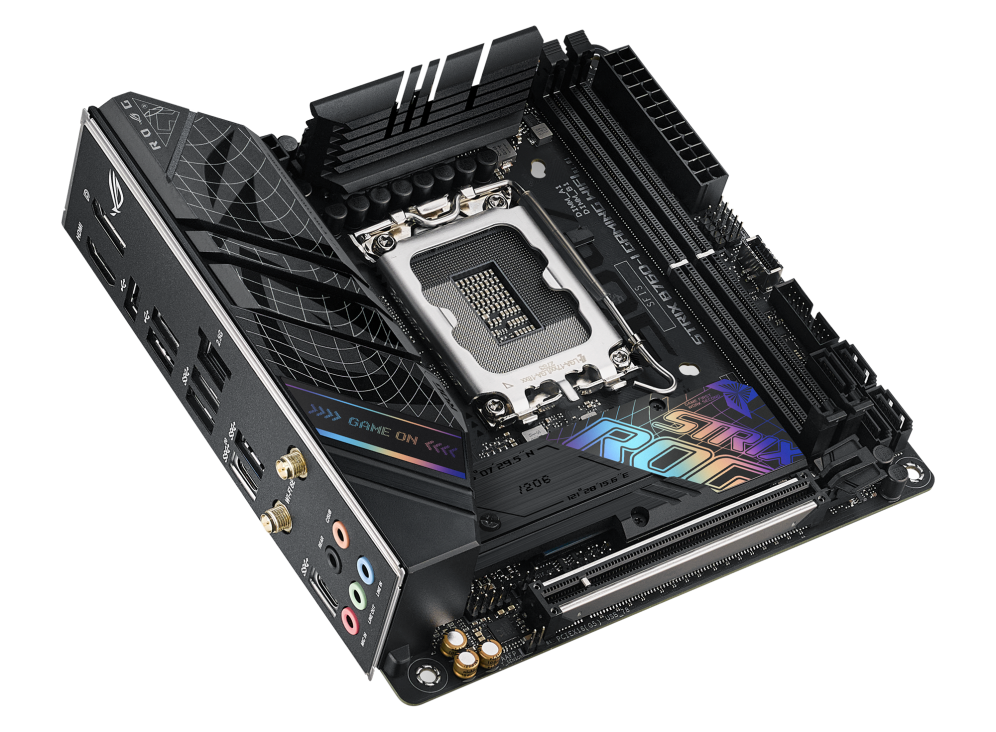

ASUS ROG STRIX B760-I GAMING WIFI

ASUS ROG STRIX B760-I GAMING WIFI

定價 HK$1,899.00
定價 售價 HK$1,899.00
特價 售罄
結帳時計算運費

TAGS: B760, Itx

相容處理器系列
記憶體技術

產品規格:

CPU



Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory



2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).



Graphics



1 x DisplayPort**
1 x HDMI®***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.



Expansion Slots



Intel® 14th & 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.



Storage



Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.



Ethernet



1 x Intel® 2.5Gb Ethernet
ASUS LANGuard



Wireless & Bluetooth



Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.



USB



Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports  (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports  (3 x Type-A)

Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports



Audio



ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.



Back Panel I/O Ports



1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks



Internal I/O Connectors



Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header



Special Features



Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate

ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- Aura RGB header
- Addressable Gen 2 header
