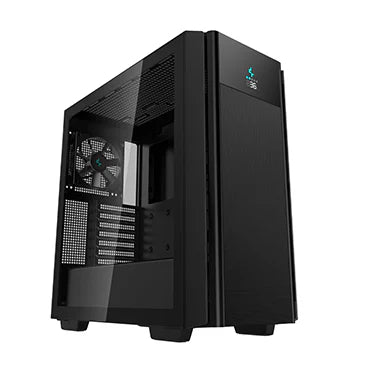

Deepcool CH510 Mesh Digital
Deepcool CH510 Mesh Digital
定價
HK$549.00
定價
售價
HK$549.00
單價
/
每
TAGS: Atx
CH510 MESH DIGITAL
The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
CH510 MESH DIGITAL
Mid-Tower ATX Case

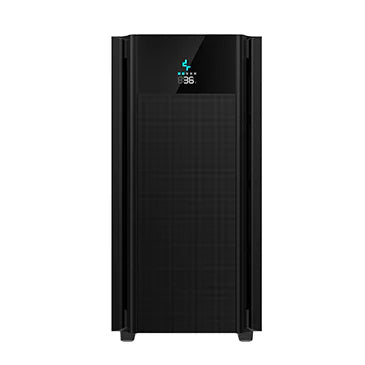

High-Airflow Panel
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.

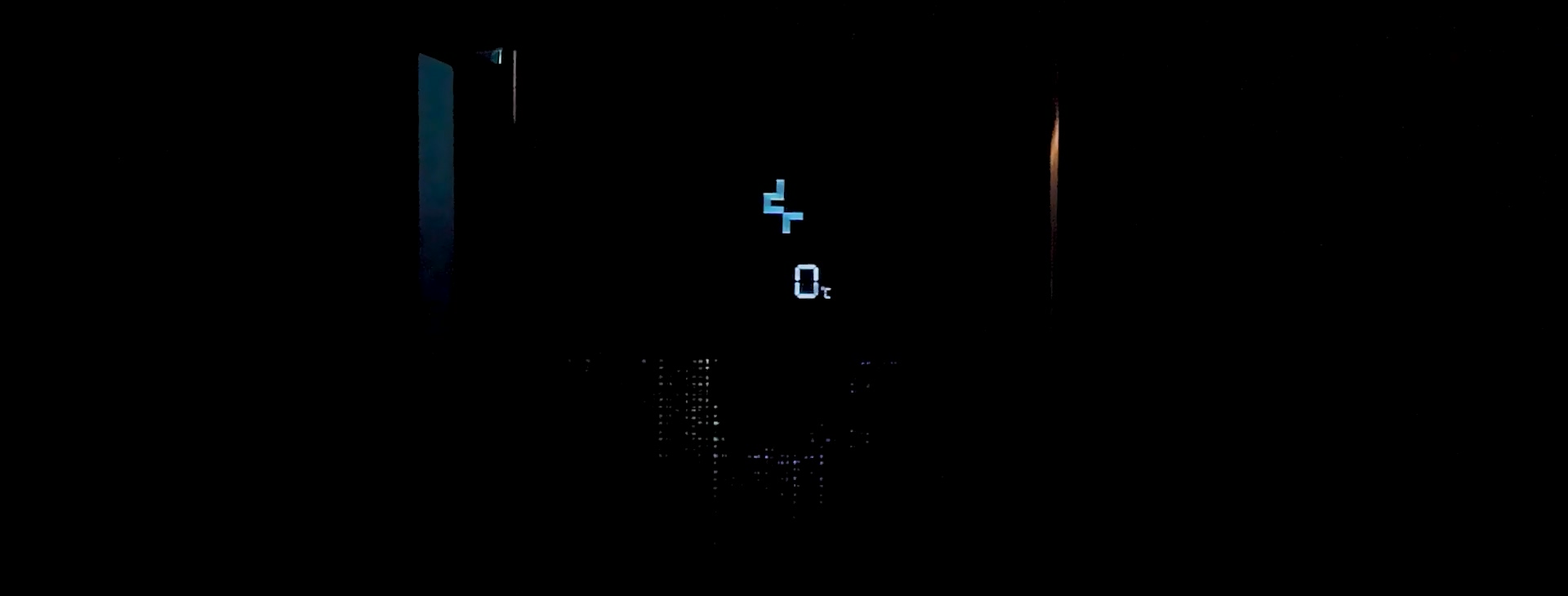

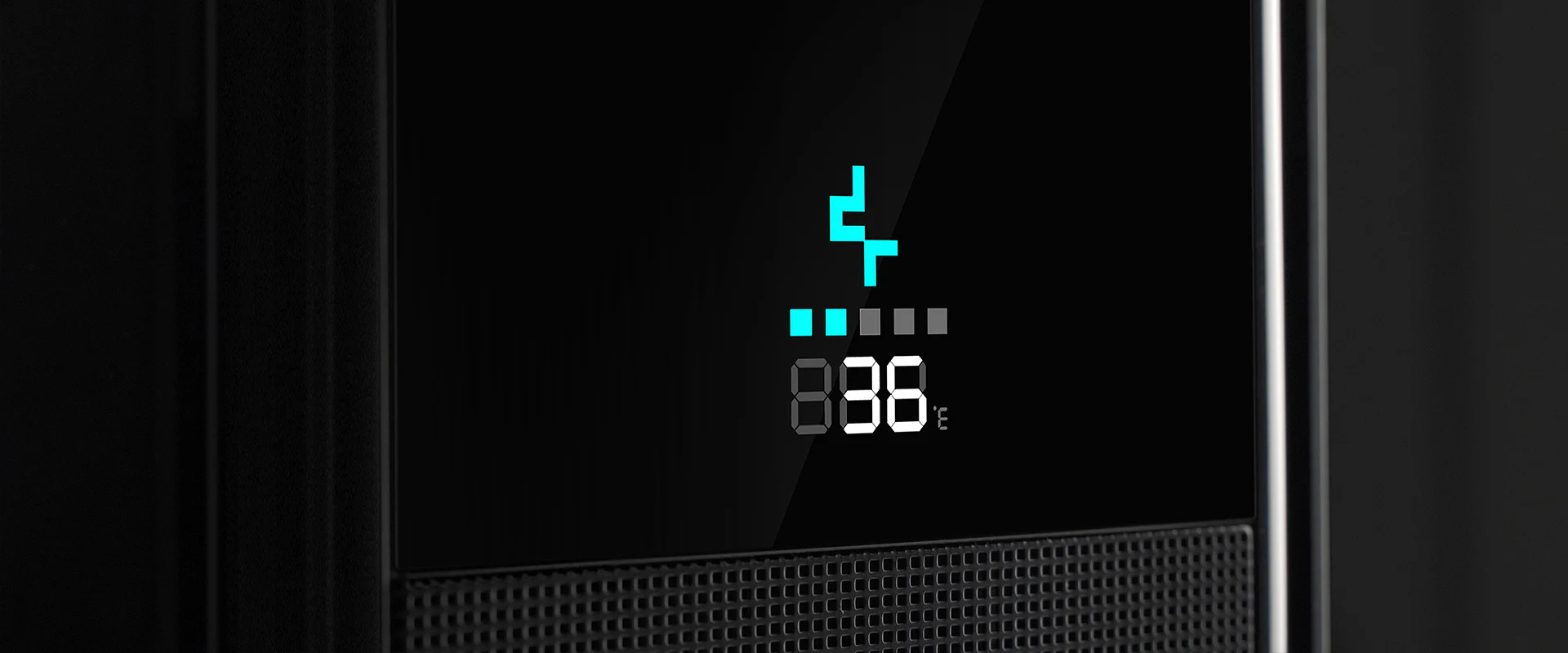

Built-In Display
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
More Capacity,
More Power
More Power

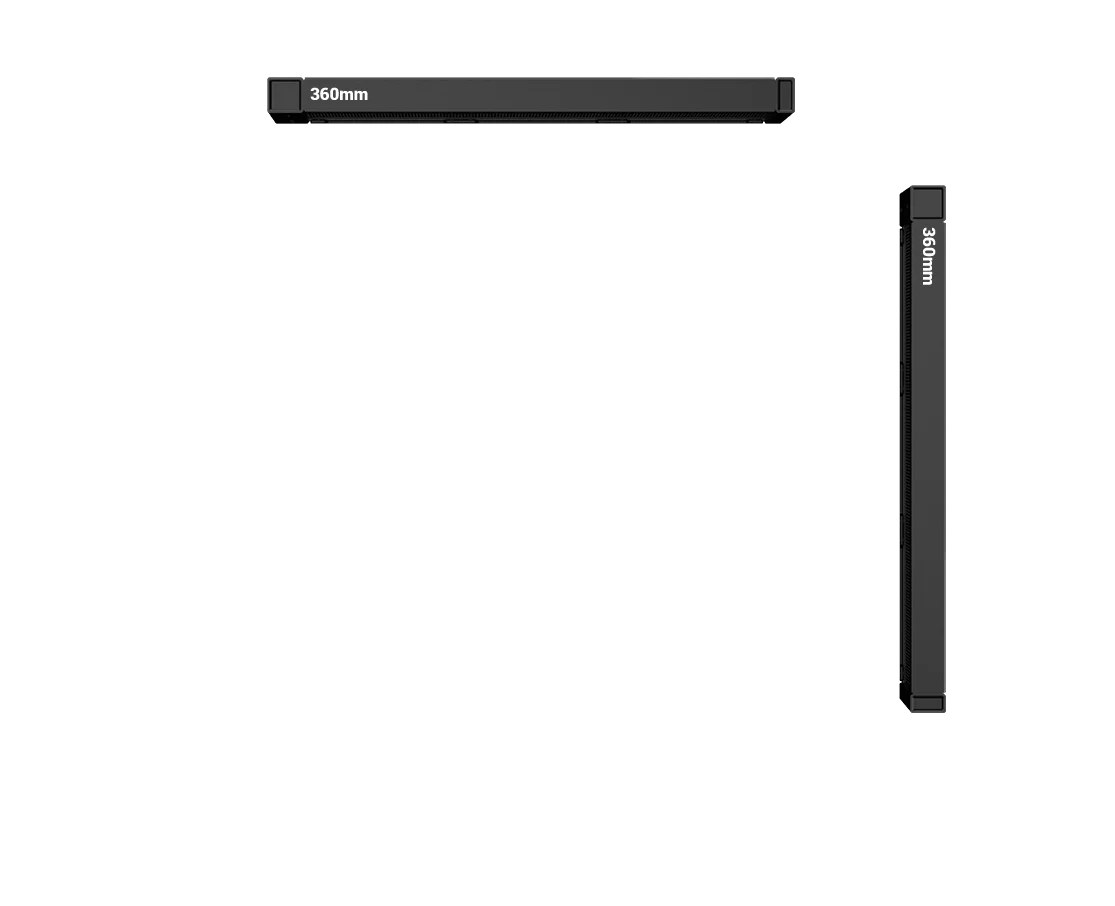

Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.

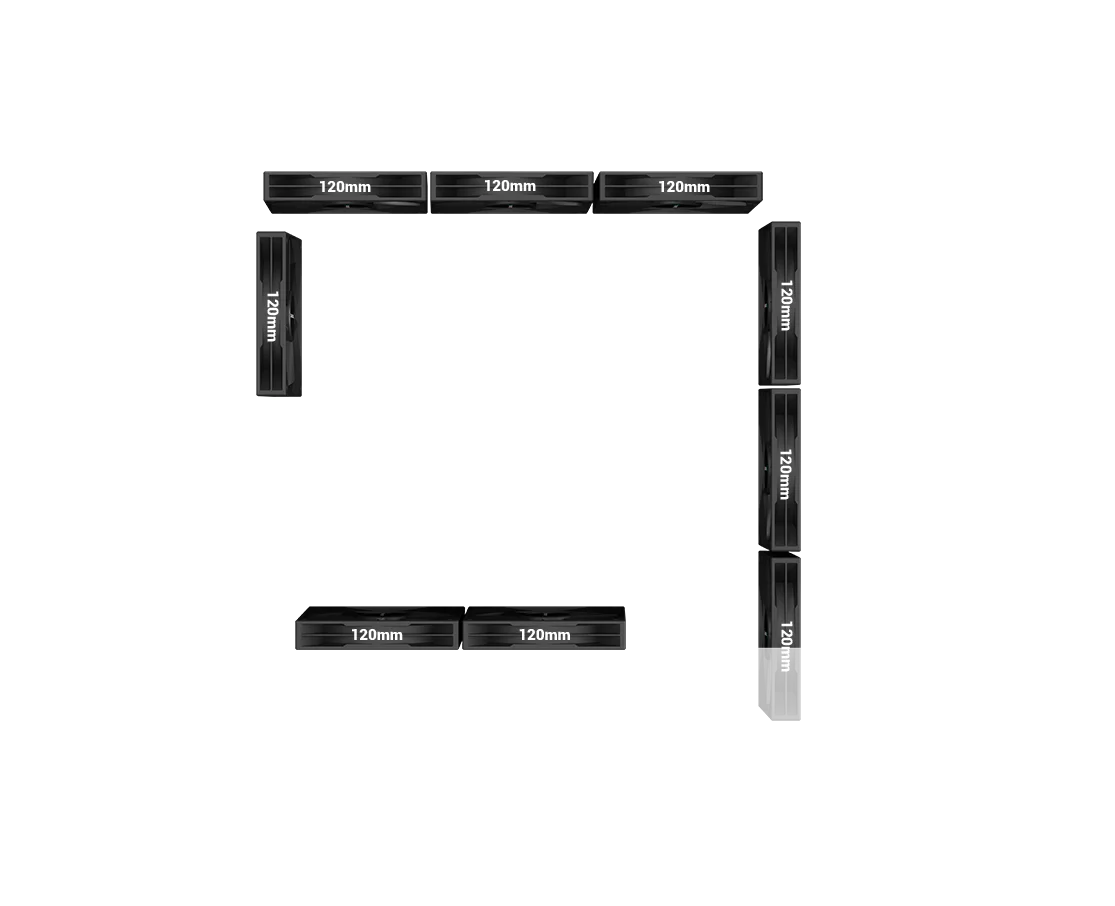

9x120mm

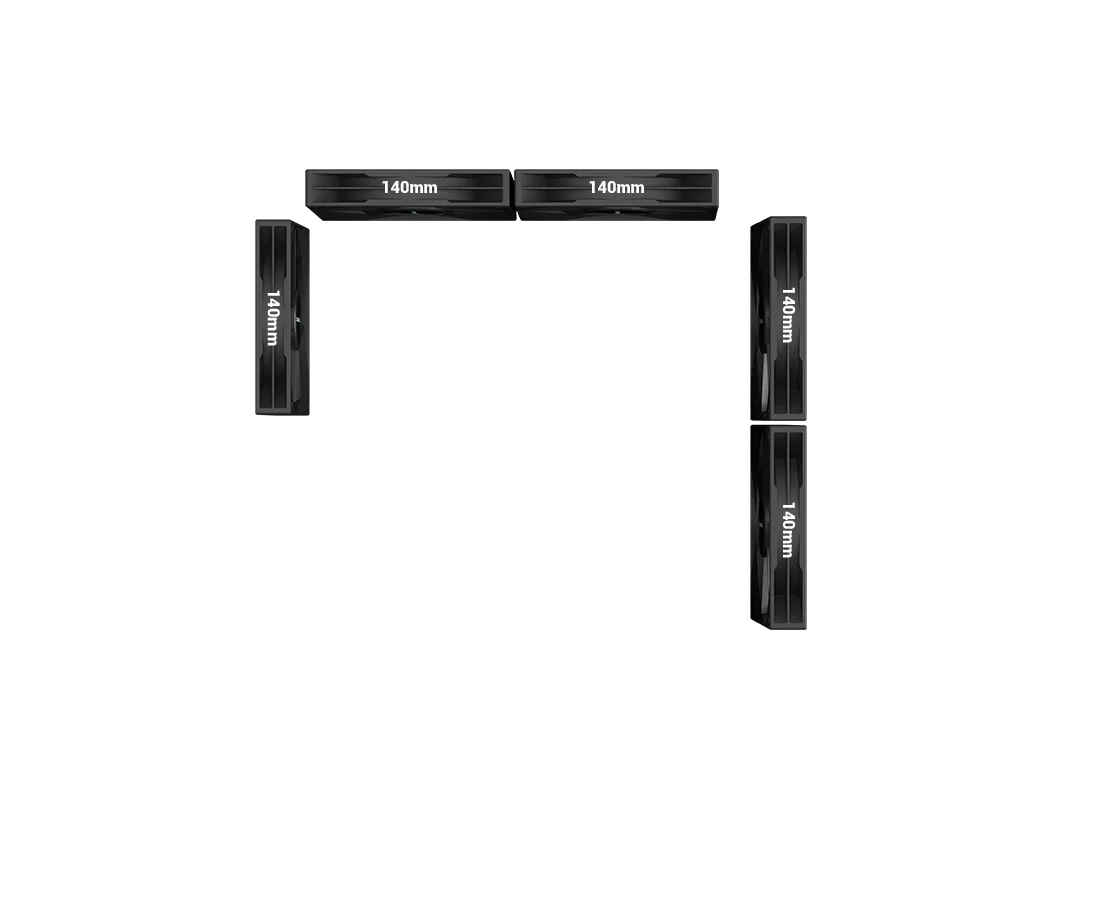

5x140mm
Radiator
Airflow

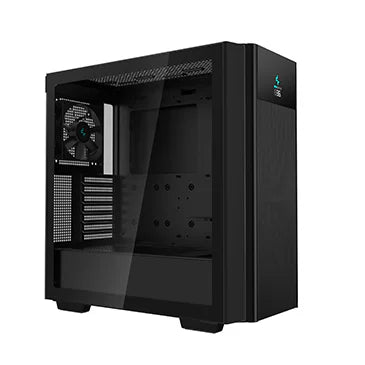

Magnetic Tempered Glass Window
The clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.
Streamlined Front I/O
Get connectivity for your modern devices needing a USB Type-C port as well as including a USB 3.0 port, and a combo audio jack for gaming headsets.
Technical Spec
Product Dimensions | 455×230×470mm(L×W×H) |
Net Weight | 7.5Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
Front I/O Ports | USB3.0×1、Type-C×1、Audio×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 7 Slots |
Pre-Installed Fans | Rear: 1×120mm |
Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
CPU Cooler Height Limit | 175mm |
GPU Length Limit | 380mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
EAN Code | 6933412775072 |
PN Code | R-CH510-BKNSE1-G-1 |
