Deepcool
Deepcool CH560 DIGITAL
Deepcool CH560 DIGITAL
定價
HK$848.00
定價
售價
HK$848.00
單價
/
每

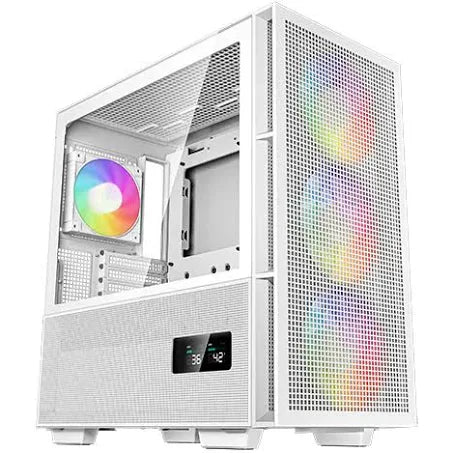

CH560 DIGITAL
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR
The CH560 DIGITAL provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
REAL-TIME DUAL-STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
MAXIMUM COOLING CAPACITY
The CH560 DIGITAL has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear—the cooling configurations are endless.
Radiators
Fans
Radiators:
Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
Fans:
Front: 3×120 / 3×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shroud: 2×120mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shroud: 2×120mm
YES, IT FITS!
With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER
Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 DIGITAL and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.
- The magnetic hybrid panel with an optional security screw
- Magnetic air filters
- Integrated GPU support arm
- 26mm of cable management space
STRESS-FREE BUILDING
Building and maintaining the CH560 DIGITAL is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM'S REACH
Everything necessary for daily routines is within reach with a Type-C, one USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
Technical Spec
Product Dimensions | 458×230×471mm(L×W×H) |
Net Weight | 7.5Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 7 Slots |
Pre-Installed Fans | Front: 3×140mm ARGB Rear: 1×120mm ARGB |
Fan Support | Front: 3×120 / 3×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
CPU Cooler Height Limit | 175mm |
GPU Length Limit | 380mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
