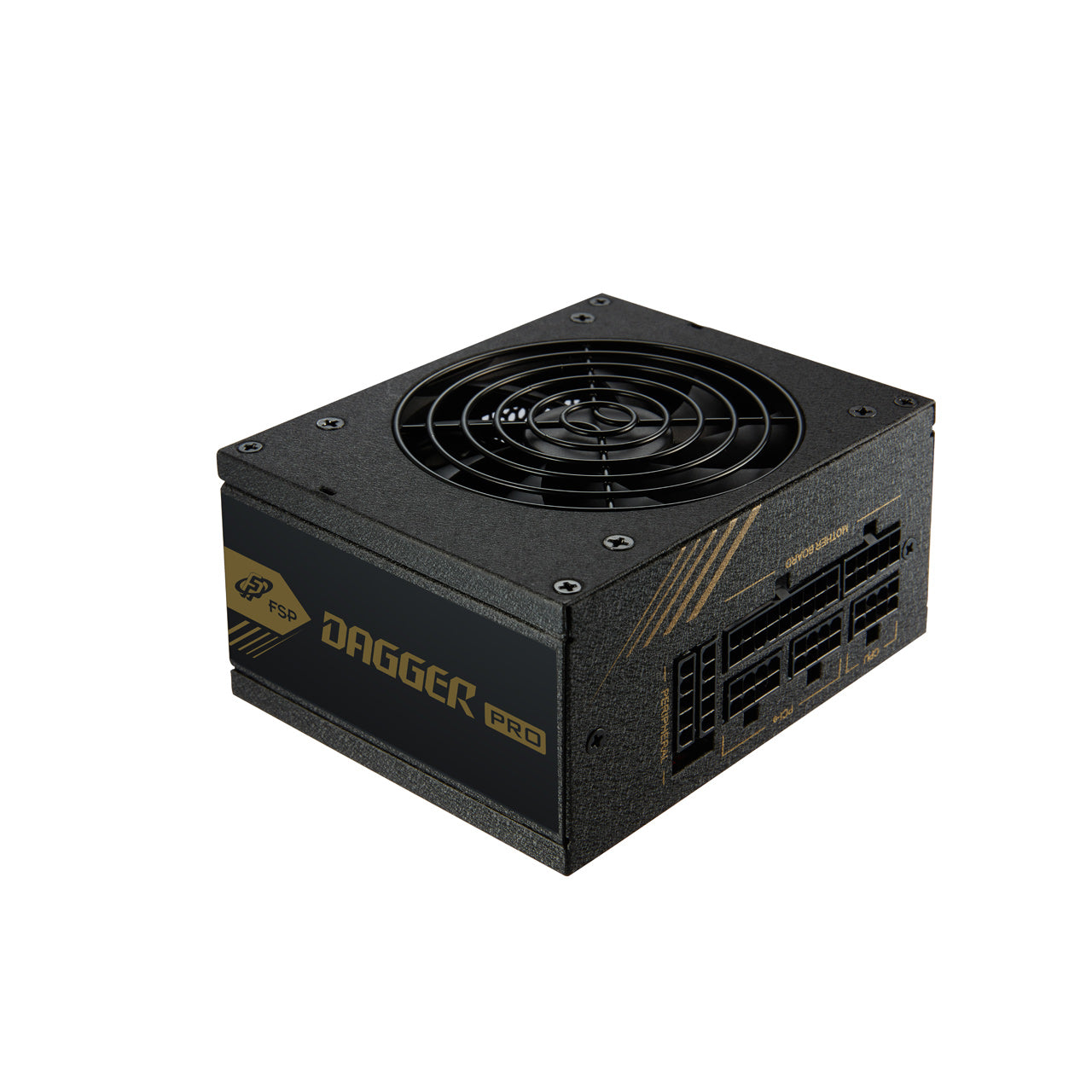

FSP Dagger Pro 850w SFX ATX3.0 PCIe5.0 80 plus Gold Fully Modular
FSP Dagger Pro 850w SFX ATX3.0 PCIe5.0 80 plus Gold Fully Modular
無法載入取貨服務供應情況
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
Tiny but Powerful
The DAGGER PRO ATX3.0 series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.
Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

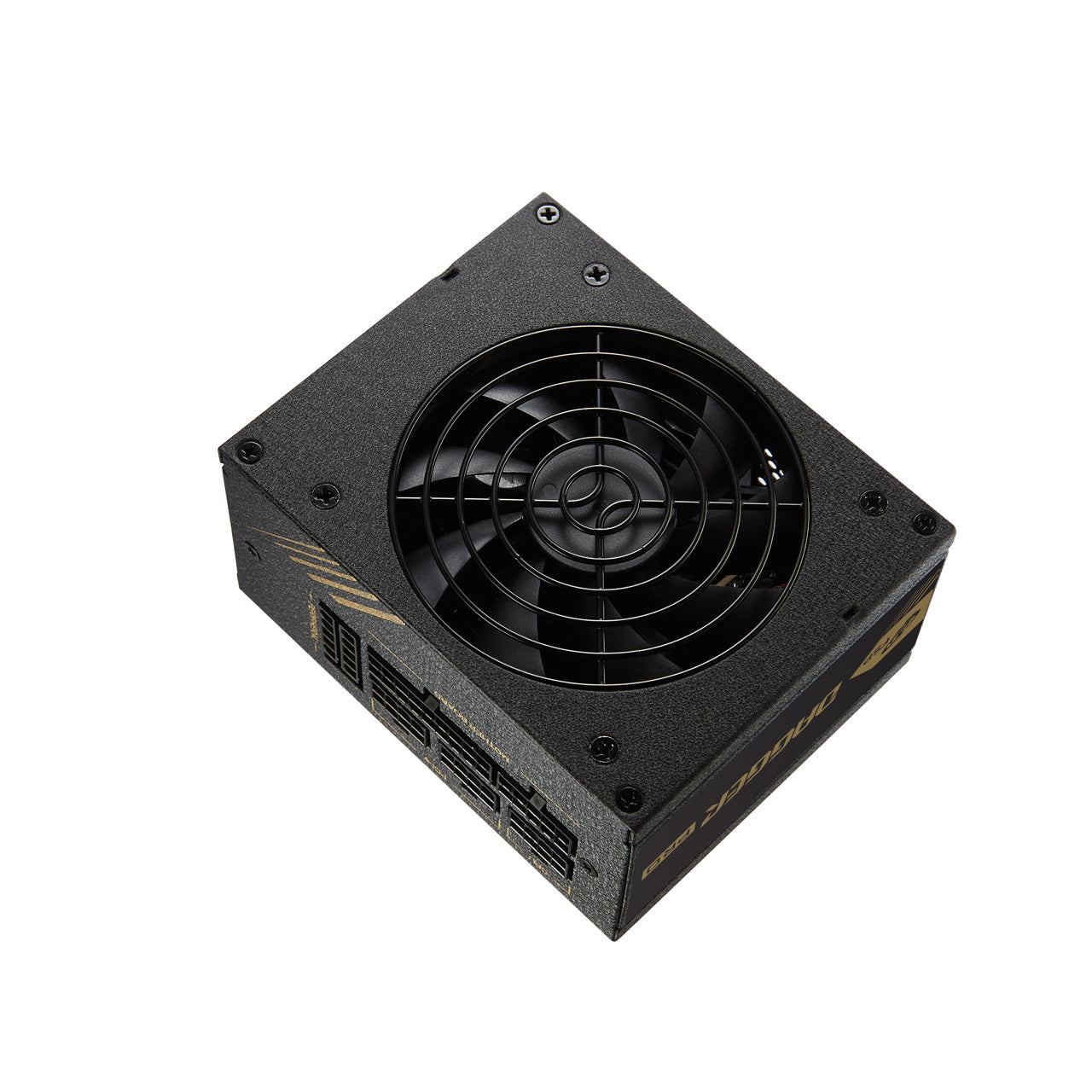

92mm Fan Optimized for Low-noise Operation
Dagger PRO ATX3.0 series is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
DAGGER PRO ATX3.0 series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO ATX3.0 series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
High Compatibility for High Power
The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.
Japanese electrolytic capacitors
DAGGER PRO ATX3.0 series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!
Supports High-end Motherboard
Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.
Performance
AC/DC
|
AC Input |
100-240Vac~ 12-6A 50-60Hz (not for china) | ||||
| 200-240Vac~ 6A 50-60Hz (Only for china) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 2.5A |
| Max Combined Power | 120W | 850W | 3.6W | 12.5W | |
| Total Power | 850W | ||||

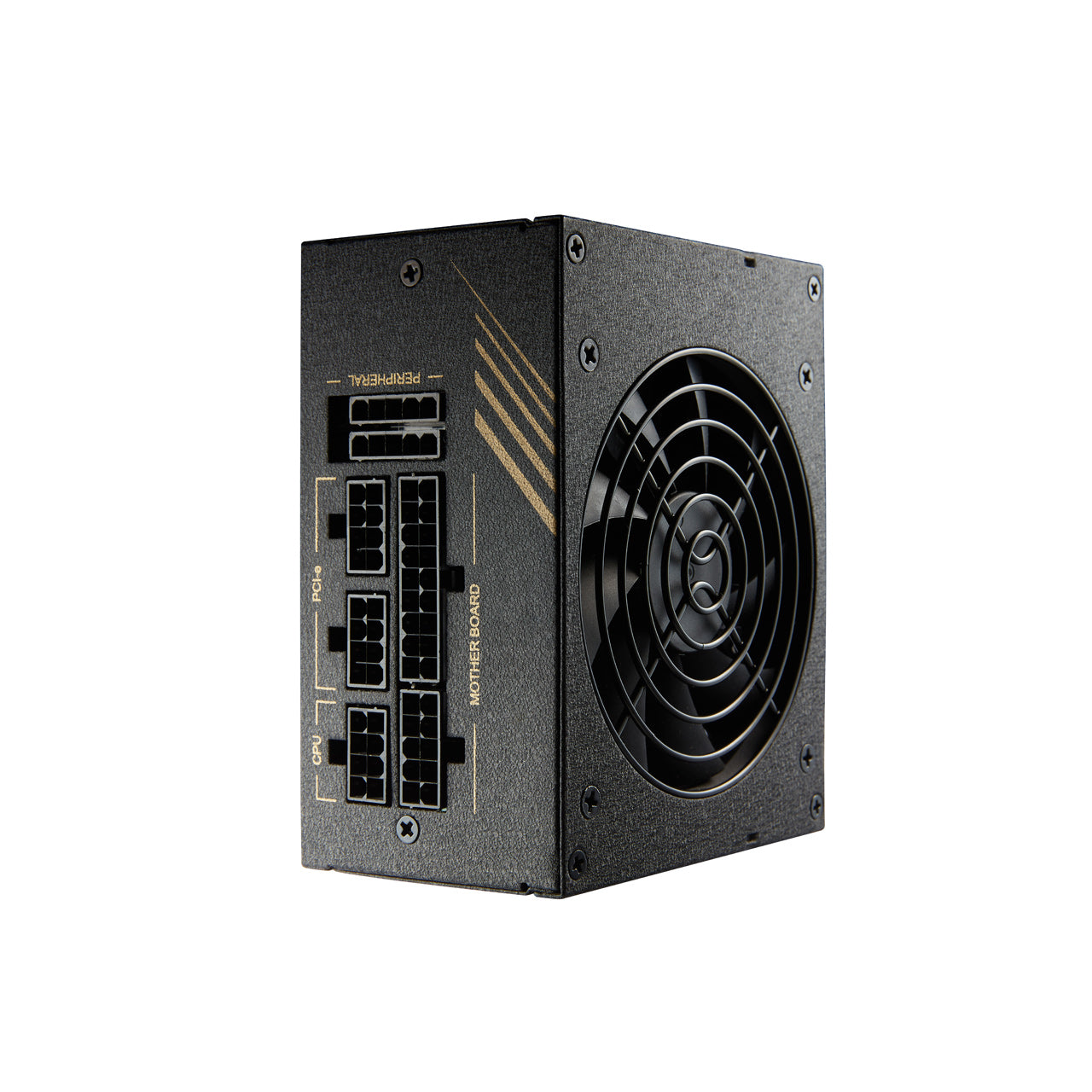

Cables
 |
 |
 |
 |
 |
 |
|
| ATX 20+4 | 4+4 PIN | PCIe 6+2 | 12VHPWR | SATA | Molex (PERIPHERAL) |
|
| Connectors | 1 | 2 | 4 | 1 | 6 | 2 |
Specifications
| Model | SDA2-850, Gen5 |
|---|---|
| Rated Output Power | 850W |
| Form Factor | SFX |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥90% at typical load |
| Fan Type | ball bearing fan,92mm |
| Dimensions(L x W x H) | 125 × 100 × 63.5 mm |
| Protection | OCP, OVP, SCP, OPP, OTP |
