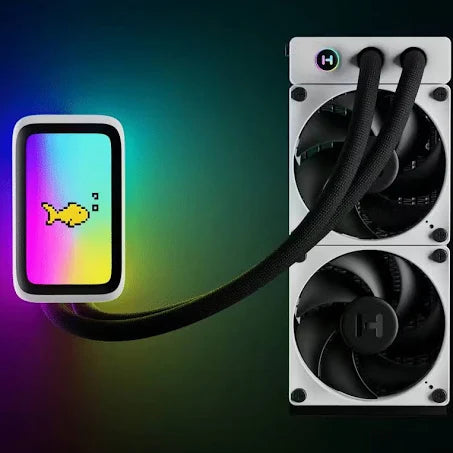

HYTE Q60 BW 240MM AIO CPU WATER COOLER
HYTE Q60 BW 240MM AIO CPU WATER COOLER
無法載入取貨服務供應情況
THICC Q60
Digital Processor Cooling
- Cooling unlocks potential
- Performance over patents
- Cables are just super gross, so we got rid of like all the cables
- THICC: Technology Harnessing Innovative Chonk for Cooling
- Dropping temps like Country Riddim at a Four Tet show
- “People turn the TV on, it looks just like a window”
Product Features
5” Ultraslim IPS Display
720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth
42-Pixel qRGB Array
Brings your system to life, deeply soaking it in mesmerizingly saturated color
Double-Hinged Floating Spout
Rises above and takes aim at your attention with 90 degrees of adjustable swivel
Dual Harmonic Pumps
Adjustable 2,000 - 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs
Ginormous Heat Exchanger
240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency
32mm THICC FP12 Fans
Dynamic adjustable 0 - 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure
Nexus Link Primary Node
Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale
Luxury Product Experience
Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind
Tech Specs
Weight
5.1 lbs
CPU Compatibility
Intel Socket LGA 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support
Heat Exchanger Dimensions
120 x 288 x 52 mm
Heat Exchanger Material
Aluminum
Heat Exchanger Technology
Parallel Dual Pass
Cold Plate Dimensions
56 x 56 x 1.5 mm
Cold Plate Material
Copper
Cold Plate Technology
Micro-Skived Fin
Magnetic Interchangeable Cold Plate Cover
Anodized Aluminum
Tube Length
400 mm
Tube Material
CIIR Rubber with Nylon Sleeving
Total CPU Block + LCD Screen Height
105 mm
Fans
THICC FP12 x 2
Fan Dimensions
120 x 120 x 32 mm
Fan Speed
0 – 3,000 RPM
Air Flow
105.8 CFM
Static Pressure
8.14 mm-H2O
Noise Level
<10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
Bearings
Fluid Dynamic Bearing
Fan Blade Material
Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Frame Material
Polycarbonate
Fan Connector
Nexus Link Type-M
Nexus-Link Channels
1x Type-C, 1x Type-M
Maximum Devices – Single Channel
18
Maximum Devices – All Channels
34
Maximum Current – Single Channel
8A/12V
Maximum Current – All Channels
15A/12V
Maximum PSU Power Draw
Up to 180W depending on the number of connected Nexus Link devices
LCD Size
5 Inches
LCD Mounting Orientation
Portrait Only
LCD Resolution
720 x 1280 (293 PPI)
LCD Panel Type
IPS
LCD Hinge
Double-Hinged Floating Spout
LCD Refresh Rate
60 Hz
LCD Brightness
300 nits
Bias Lighting
42-Pixel qRGB Array
Logo Lighting
4-Pixel qRGB Array
Pump RPM
2,000 – 4,500 RPM
Pump Bearing
Ceramic
Pump Impeller Diameter
24 mm
Coolant Operation Temperatures
-10 to 60 C
Processor
Quad-Core 64-bit ARM Cortex
Speed
1.3 GHz
RAM
2GB DDR4 @2666 MT/s
Storage
32GB eMMC
Graphics Engine
500 MHz
Co-Processor
32-Bit ARM Cortex-M4
Input Connections
USB 2.0 Header, PWM, 6-Pin PCIe Power
Included Accessories
Intel Mounting Kit + AMD Mounting Kit + Fan Screws
Thermal Paste
Yes, Pre-Applied
Nexus Powered
Yes
Warranty
6 years
Sku
FAN-HYTE-Q60-BW
