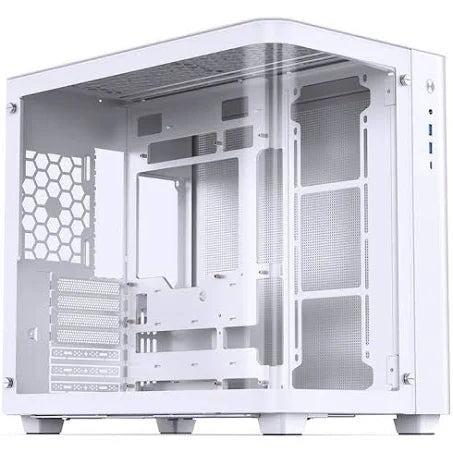

Jonsbo TK3 (背插機箱)

Dimension：288mm (W) * 438mm (D) * 415mm (H)

Material：0.7mm steel

Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)

Motherboard：ITX / M-ATX / ATX

Drive Bay：3.5" HDD*2/2.5" SSD*1  or 2.5" SSD*2/3.5" HDD*1

Cooling Systerm：Top:120mm*3/140*2(optional);  Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)

Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)

Power Supply: ATX≤220mm

CPU Cooler：165mm

Video Card: ≤420mm

Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）

Expansion Solt：7
