MAGNIMGEAR

MAGNIMGEAR NEO QUBE 2 SERIES

MAGNIMGEAR NEO QUBE 2 SERIES

定價 HK$879.00
定價 售價 HK$879.00
特價 售罄
結帳時計算運費

TAGS: Atx, 白色零件

顏色
無限鏡/普通款

INTEGRATED LIGHTING
AND INFINITY MIRROR

  • ◆ Available with infinity mirror or light strip
  • ◆ Build-in D-RGB controller with manual control
  • ◆ Expand and sync with compatible D-RGB lighting products
Top-front-down view of Neo Qube 2 White

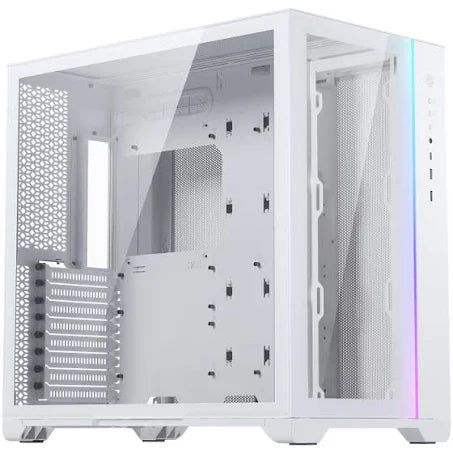

Neo Qube 2 White Edition

DUAL CHAMBER DESIGN
WITHOUT COMPROMISE

  • ◆ Highlights all system components with glass exterior
  • ◆ High airflow mesh panels and bottom dust filter
  • ◆ Spacious interior makes cable management a breeze

STORAGE SUPPORT

  • ◆ Triple SSD bracket
  • ◆ Dual HDD cage (removable)
  • ◆ Velcro-tie cable management
Neo Qube 2 possible storage positions
Neo Qube 2 open view showing motherboard and gpu positions

HARDWARE SUPPORT

  • ◆ Up to 280mm wide E-ATX motherboards
  • ◆ Supports GPUs up to 410 mm long
  • ◆ Support for tower CPU coolers up to 148 mm tall

COOLING SUPPORT

  • ◆ Up to nine 120 mm fan locations
  • ◆ Up to four 140 mm fan locations
  • ◆ 360 Radiator support in the Top, Side, and Bottom
Neo Qube 2 showing cooling positioning

Technical Specifications

OPTIONS
MODEL NO. MG-NE620Q_DBK02 MG-NE620Q_DWT02 MG-NE620QI_DBK02 MG-NE620QI_DWT02
UPC 886523900672 886523900689 886523900696 886523900702

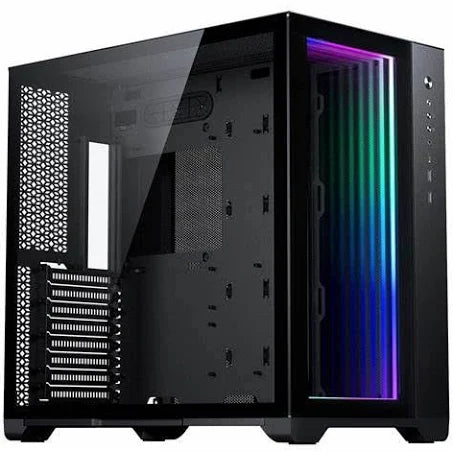

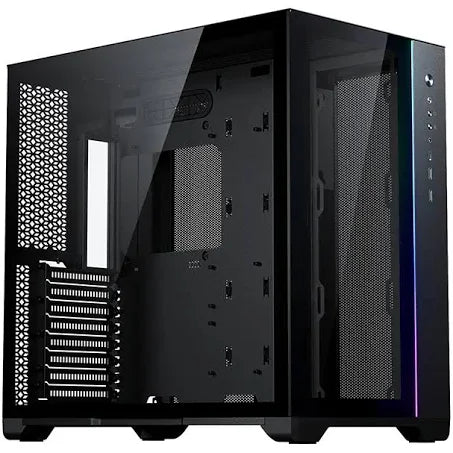

VARIANTS Black White Infinity Mirror Black Infinity Mirror White
CONTENTS
DIMENSIONS 270 x 450 x 460 mm | 10.7 x 17.9 x 18.3 in
FORM FACTOR Mid Tower
MATERIALS Steel Chassis, Tempered Glass Windows
MB SUPPORT E-ATX, ATX, micro-ATX, mini-ITX
FRONT I/O USB 3.1 gen 2 type-C, 2x USB 3.0, Microphone/Headphone,
D-RGB Mode Button, D-RGB Color Button, Power Button, Reset Button
SIDE WINDOW Yes, Tempered Glass front and left-side window
NET WEIGHT 8.80 kg | 19.4 lbs
GROSS WEIGHT 10.50 kg | 23.15 lbs
PACKAGE DIMENSIONS 510 x 358 x 554mm | 20.1 x 14.1 x 21.8 in
FAN SUPPORT 120 mm 140 mm
SIDE 3x -
TOP 3x 2x
BOTTOM 3x 2x
RADIATOR SUPPORT
SIDE Up to 360 -
TOP Up to 360 Up to 280
BOTTOM Up to 360 -
PCI SLOTS & DRIVE BAYS
PCI SLOTS 8 slots
Vertical GPU Yes, with optional Vertical GPU Bracket
INTERNTAL 3.5" 2 (2x included)
INTERNTAL 2.5" 5 Included (3x if 3.5" bays are used)
CLEARANCE
GPU LENGTH 410 mm | 16.1 in
MOTHERBOARD WIDTH 280 mm | 11.0 in
CPU COOLER HEIGHT 148 mm | 5.9 in
PSU (INCLUDING CABLE) 275 mm | 10.9 in (155 mm if lower SSD’s installed)
SIDE RADIATOR 128 x 400 mm
SIDE RADIATOR THICKNESS 50mm (behind MB tray)
TOP RADIATOR 140 x 430 x 75 mm
BOTTOM RADIATOR 130 x 410 mm
SCOPE OF DELIVERY
NEO QUBE 2 CHASSIS
ACCESSORY BAG/BOX
ZIP TIES 6x
MB/SSD Screw 33x
PSU Screw 4x
HDD Cage Screw 8x
MB stand-off 5x
