MSI

MSI MPG X870E CARBON WIFI

MSI MPG X870E CARBON WIFI

定價 HK$3,599.00
定價 售價 HK$3,599.00
特價 售罄
結帳時計算運費

TAGS: Amd am5, Atx, X870, X870e

Chipset AMD X870E
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Audio Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices

* RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
LAN 1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switch

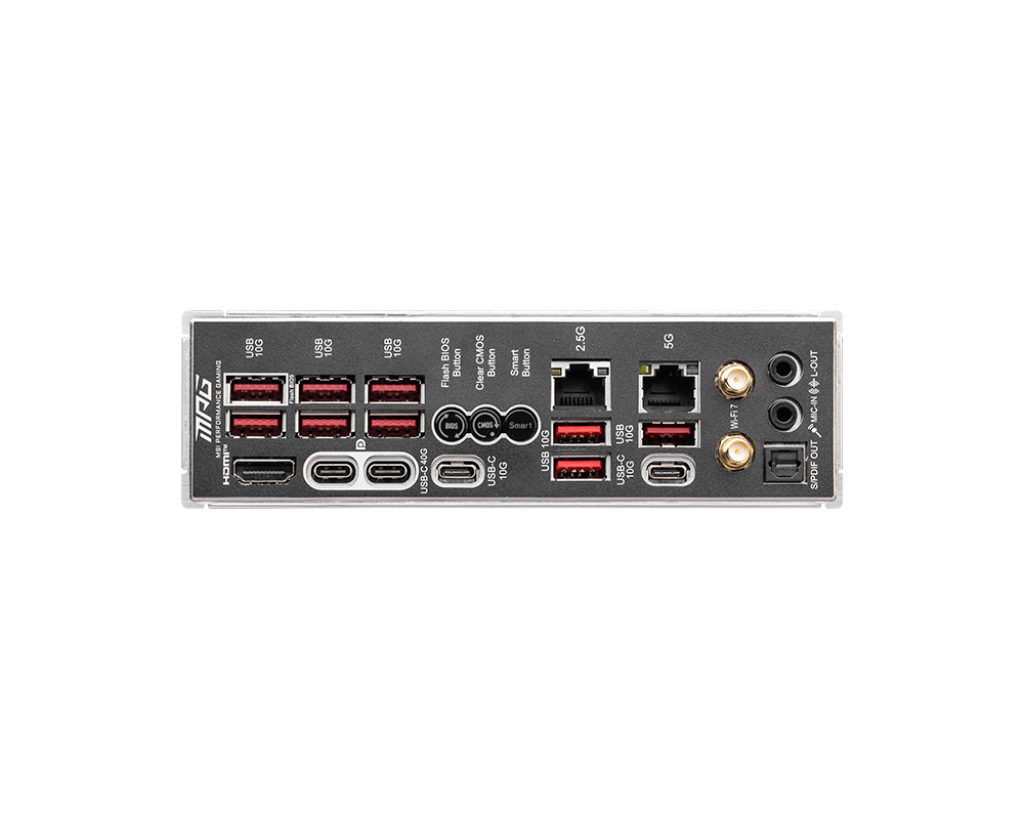

BACK PANEL PORTS
  1. USB 10Gbps Type-A
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 2.5G LAN
  6. 5G LAN
  7. Audio Connectors
  8. HDMI™
  9. USB 40Gbps Type-C
  10. USB 10Gbps Type-C
  11. USB 10Gbps Type-A
  12. USB 10Gbps Type-C
  13. Wi-Fi / Bluetooth
  14. Optical S/PDIF Out

OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
