Noctua

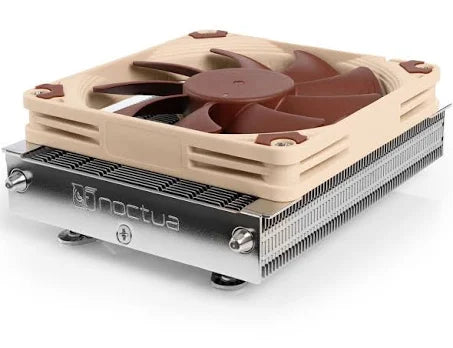

Noctua NH-L9A AM5

Noctua NH-L9A AM5

HK$430.00
HK$430.00
特價 售罄
結帳時計算運費。

TAGS: 下吹式風冷

Cooler Specification
Socket compatibility

AMD AM5
Height (without fan)

23 mm
Width (without fan)

114 mm
Depth (without fan)

92 mm
Weight (without fan)

390 g
Height (with fan)

37 mm
Width (with fan)

114 mm
Depth (with fan)

92 mm
Weight (with fan)

465 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR

61
Max. TDP

see NSPR
Fan compatibility

92x92x14mm, 92x92x25mm
Scope of delivery

  • NF-A9x14 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM5 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge
Warranty

6 Years
FAN Specification
Model

Noctua NF-A9x14 HS-PWM
Bearing

SSO2
Max. rotational speed (+/- 10%)

2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)

1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)

600 RPM
Max. airflow

57,5 m³/h
Max. airflow with L.N.A.

40,8 m³/h
Max. acoustical noise

23,6 dB(A)
Max. acoustical noise with L.N.A.

14,8 dB(A)
Input power (max.)

2,52 W
Voltage range

12 V
MTTF

> 150.000 h
