Noctua

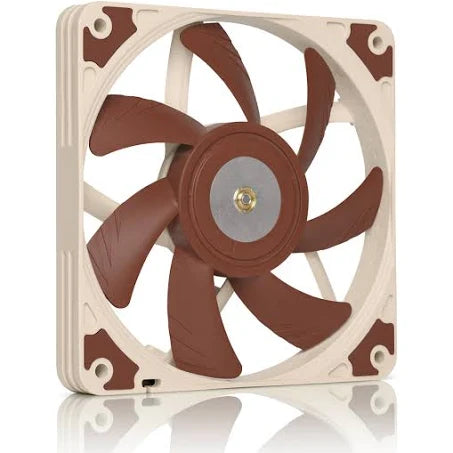

Noctua NF-A12x15 FLX

Noctua NF-A12x15 FLX

HK$185.00
HK$185.00
特價 售罄
結帳時計算運費。

TAGS: 120mm, 1隻

FAN Specification
Size

120x120x15 mm
Mounting hole spacing

105x105 mm
Connector & pin-configuration

4-pin PWM
Cable length

20cm + 30cm NA-EC1 extension cable
Bearing

SSO2
Blade geometry

A-Series with Flow Acceleration Channels
Frame technology

AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)

1850 RPM
Rotational speed with L.N.A. (+/- 10%)

1400 RPM
Min. rotational speed @ 20% PWM (+/-20%)

450 RPM
Airflow

94,2 m³/h
Airflow with L.N.A.

70,8 m³/h
Acoustical noise

23,9 dB(A)
Acoustical noise with L.N.A.

16,8 dB(A)
Static pressure

1,53 mm H₂O
Static pressure with L.N.A.

0,9 mm H₂O
Input power (typical)

1,27 W
Input power (max.)

1,56 W
Input current (typical)

0,11 A
Max. input current

0,13 A
Operating voltage

12 V
Voltage PWM signal

5 V
MTTF

> 150.000 h
Scope of delivery

  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • Fan screws
Warranty

6 years
