Noctua

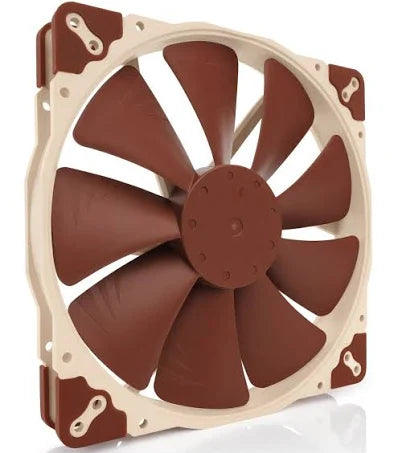

Noctua NF-A20 PWM

Noctua NF-A20 PWM

HK$270.00
HK$270.00
特價 售罄
結帳時計算運費。

TAGS: 1隻, 200mm

FAN Specification
Size

200x200x30 mm
Mounting hole spacing

154x154, 110x180, 170x170 mm
Connector & pin-configuration

4-pin PWM
Cable length

20cm + 30cm NA-EC1 extension cable
Bearing

SSO2
Blade geometry

A-Series with Flow Acceleration Channels
Frame technology

AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)

800 RPM
Rotational speed with L.N.A. (+/- 10%)

550 RPM
Min. rotational speed @ 20% PWM (+/-20%)

350 RPM
Airflow

146,9 m³/h
Airflow with L.N.A.

100,8 m³/h
Acoustical noise

18,1 dB(A)
Acoustical noise with L.N.A.

10,7 dB(A)
Static pressure

1,08 mm H₂O
Static pressure with L.N.A.

0,51 mm H₂O
Input power (typical)

0,82 W
Input power (max.)

0,96 W
Input current (typical)

0,07 A
Max. input current

0,08 A
Operating voltage

12 V
Voltage PWM signal

5 V
MTTF

> 150.000 h
Scope of delivery

  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • NA-AV4 anti-vibration mounts
  • Fan screws
Warranty

6 years
