Noctua

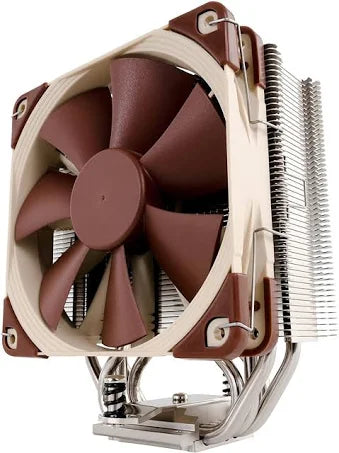

Noctua NH-U12S

Noctua NH-U12S

HK$500.00
HK$500.00
特價 售罄
結帳時計算運費。

TAGS: 單塔

Cooler Specification

Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

(Current socket compatibility applies to all coolers purchased since Q1 2022. For older coolers, please refer to this chart.)
Height (without fan)

158 mm
Width (without fan)

125 mm
Depth (without fan)

45 mm
Height (with fan)

158 mm
Width (with fan)

125 mm
Depth (with fan)

71 mm
Weight (with fan)

755 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR

129
Max. TDP

see NSPR
Fan compatibility

120x120x25
Scope of delivery

  • NF-F12 PWM premium fan
  • NA-RC6 Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ mounting kit
  • Anti-vibration pads and fan-clips for second NF-F12
  • Noctua Metal Case-Badge
Warranty

6 Years

FAN Specification

Model

Noctua NF-F12 PWM
Bearing

SSO2
Max. rotational speed (+/- 10%)

1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)

300 RPM
Max. airflow

93,4 m³/h
Max. airflow with L.N.A.

74,3 m³/h
Max. acoustical noise

22,4 dB(A)
Max. acoustical noise with L.N.A.

18,6 dB(A)
Voltage range

12 V
MTTF

> 150.000 h
