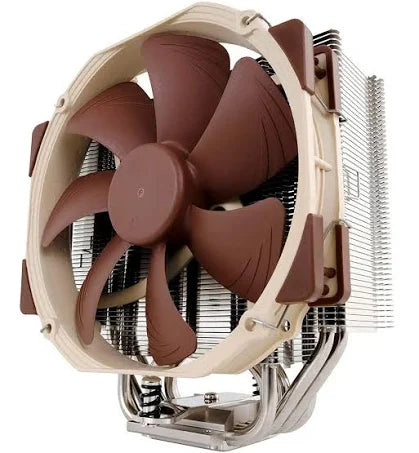

Noctua NH-U14S

Noctua NH-U14S

HK$620.00
HK$620.00
特價 售罄
結帳時計算運費。

TAGS: 單塔

Cooler Specification
Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart.)
Height (without fan)

165 mm
Width (without fan)

150 mm
Depth (without fan)

52 mm
Height (with fan)

165 mm
Width (with fan)

150 mm
Depth (with fan)

78 mm
Weight (with fan)

935 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR

162
Max. TDP

see NSPR
Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery

  • NF-A15 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ mounting kit
  • Anti-vibration pads and fan-clips for second NF-A15
  • Noctua Metal Case-Badge
Warranty

6 Years
FAN Specification
Model

Noctua NF-A15 PWM
Bearing

SSO2
Max. rotational speed (+/- 10%)

1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)

300 RPM
Max. airflow

140,2 m³/h
Max. airflow with L.N.A.

115,5 m³/h
Max. acoustical noise

24,6 dB(A)
Max. acoustical noise with L.N.A.

19,2 dB(A)
Input power (max.)

1,56 W
Voltage range

12 V
MTTF

> 150.000 h
