NZXT

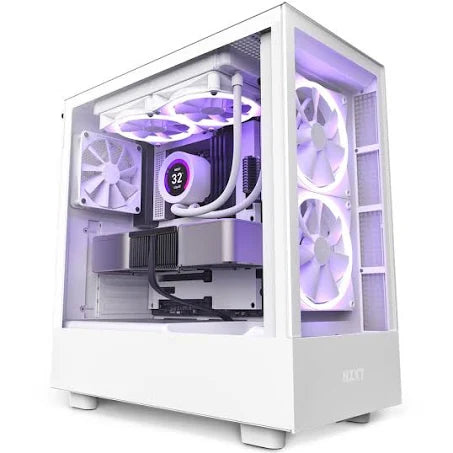

NZXT H5 Elite
NZXT H5 Elite
Overview
Details
The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
- Pre-installed fan on bottom inside panel is angled to cool GPU
- Tempered glass front panel and built-in RGB controller
- Perforated top panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels
- Front panel supports 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB fans (Case Version) & one F120Q fan (Case Version)
Inside the Box
-
H5 Elite Case1
-
Front I/O split cables1
-
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1
More Videos
Fan Capacity
- Top: 2x 120mm
- Front: 2x 140mm / 2x 120mm
- Rear: 1x 120mm
- Bottom: 1x 120mm
Radiator Capacity
Tech Specs
Key Specs
-
Motherboard Support:
Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:
Mid-Tower
-
Case Material:
SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
-
Height:
464 mm (With Feet)
-
Width:
227 mm
-
Depth:
446 mm
-
Weight:
8.1 kg
Compatibility & Clearance
-
Max CPU Cooler Clearance:
Up to 165mm
-
Max GPU Clearance:
Up to 365mm
-
Front Radiator Clearance:
45mm
-
Cable Management:
Up to 23mm
Front I/O Ports
-
USB 3.2 Gen 1 Type-A:
1
-
USB 3.2 Gen 2 Type-C:
1
-
Headset Audio Jack:
1
Included Accessories
-
Installation screws:
1
-
Cable ties:
10
-
RGB Lighting Controller:
NZXT RGB Connector: 3 (Support up to 120 LEDs)
Expansion Slots
-
Standard:
7
Drive Bays
-
2.5":
1+1
-
3.5":
1
Fan Support
-
Front:
2 x F Series RGB 140mm (Case Version) included
-
Top:
2 x 120mm
-
Rear:
1 x 120mm
-
Bottom:
1 x F Series Quiet 120mm (Case Version) included
-
Filters:
All Air Intakes
Radiator Support
-
Front:
Up to 280mm
-
Top:
Up to 240mm
-
Rear:
Up to 120mm
Fan Specs
-
Model:
F140 RGB Fan (Case Version)
-
Speed:
500 - 1800 RPM
-
Airflow:
24.85 - 89.48 CFM
-
Static Pressure:
0.94 - 3.39 mm-H2O
-
Noise:
20 - 32.5 dBA
-
Fan Connector:
3-pin
Fan Specs
-
Model:
F120Q Airflow Fan (Case Version)
-
Speed:
1200 ± 240 RPM
-
Airflow:
62.18 CFM
-
Static Pressure:
1.05 mm-H2O
-
Noise:
25.1 dBA
-
Fan Connector:
3-pin
General
-
Warranty:
2 Years
