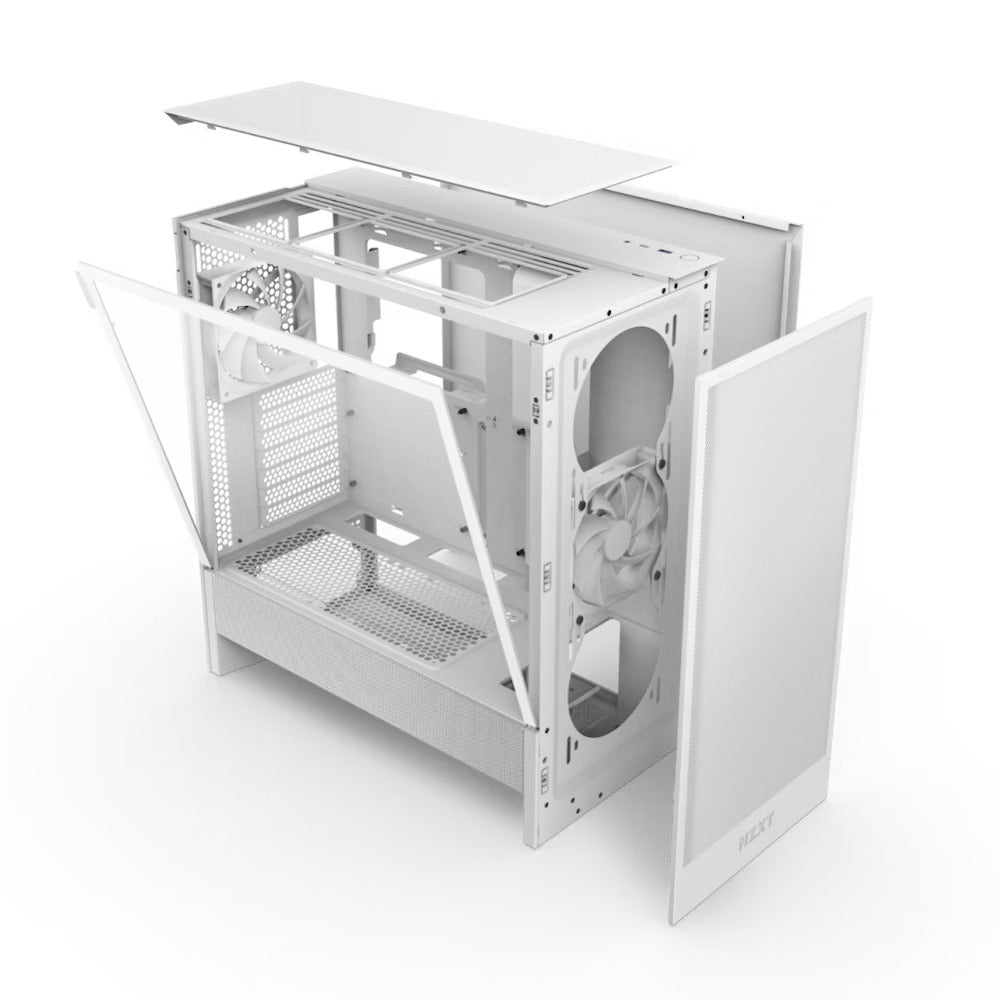

NZXT H5 Flow 2024

Key Specs

• Motherboard Support:

  E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

• Enclosure Type:

  Mid-Tower

• Case Material:

  SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (with feet):

  465 mm / 18.31 in

• Width:

  225 mm / 8.86 in

• Depth:

  430 mm / 16.93 in

• Weight:

  7.28 kg / 16.04 lb

Compatibility & Clearance

• CPU Cooler Height:

  Up to 170 mm

• GPU Length:

  Up to 410 mm

• PSU Length:

  Up to 200 mm

• Cable Management:

  Up to 28.7 mm

• Top Radiator:

  Up to 240 mm (280 mm with low-profile memory)

• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:

  Up to 55 mm

Front Ports

• USB 3.2 Type-A:

  1

• USB 3.2 Gen 2x2 Type-C (20 Gbps):

  1

• Headset Audio Jack:

  1

Expansion Slots

• Standard:

  7

• Vertical:

  0

Drive Bays

• 2.5":

  2

• 3.5":

  1

Fan Support

• Front:

  3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)

• Top:

  2 x 120 mm / 2 x 140 mm

• Bottom:

  2 x 120 mm

• Rear:

  1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

• Front:

  Up to 360 mm

• Top:

  Up to 240 mm (280mm with low-profile memory only)

Fan Specs

• Model:

  F120Q (Case Version)

• Speed:

  1,350 ± 150 RPM

• Airflow:

  60.2 CFM

• Static:

  1.05 mm-H₂O

• Noise:

  24.1 dBA

• Fan Connector:

  3-pin

General

• Warranty:

  2 years
