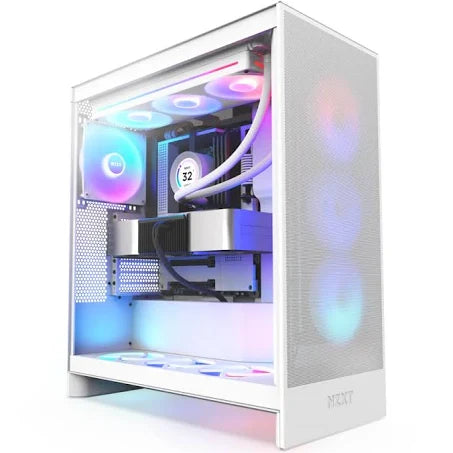

NZXT H7 Flow RGB 2024

Key Specs

• Motherboard Support:

  E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

• Enclosure Type:

  Mid-Tower

• Case Material:

  SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (With Feet):

  544 mm

• Width:

  244 mm

• Depth:

  468 mm

• Weight:

  11.13 kg

Compatibility & Clearance

• CPU Cooler Height:

  Up to 185mm

• GPU Length:

  Up to 410 mm

• PSU Length:

  Up to 200 mm

• Cable Management:

  Up to 34.5 mm

• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:

  Up to 57 mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A:

  2

• USB 3.2 Gen 2x2 Type-C (20 Gbps):

  1

• Headset Audio Jack:

  1

Expansion Slots

• Standard:

  7

• Vertical:

  0

Drive Bays

• 2.5":

  2+2

• 3.5":

  2

Fan Support

• Front:

  3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)

• Top:

  3 x 120 mm / 2 x 140 mm

• Bottom:

  3 x 120 mm

• Rear:

  1 x 120 mm / 1 x 140 mm

• Filters:

  High-Performance Mesh

Radiator Support

• Front:

  Up to 420 mm

• Top:

  Up to 360mm

• Rear:

  Up to 140mm

Fan Specs

• Model:

  F360 RGB Core Fan (Case Version)

• Speed:

  1,700 ± 200 RPM

• Airflow:

  50.1 CFM

• Static:

  1.27 mm-H₂O

• Noise:

  23.3 dBA

• Fan Connector:

  3-pin

General

• Warranty:

  2 years
