NZXT H9 Elite
NZXT H9 Elite
Overview
Details

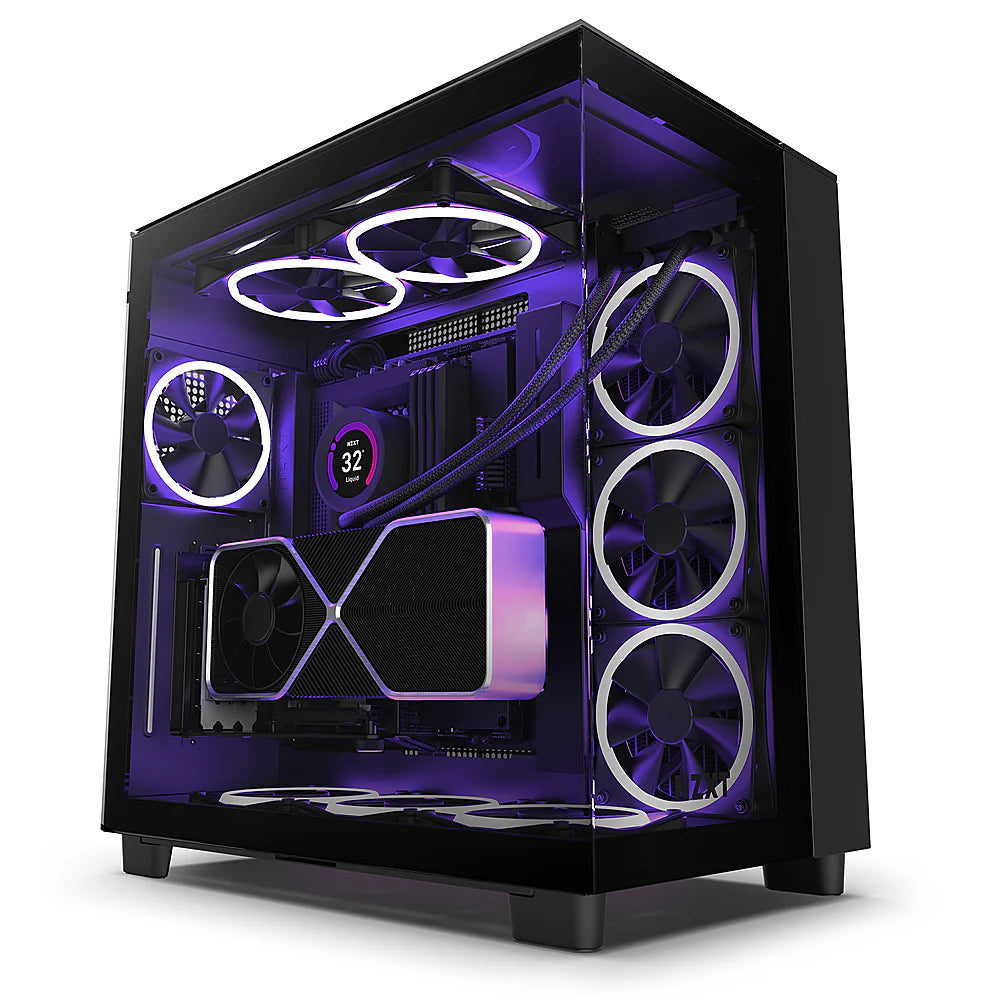

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan (Case Version)
Inside the Box
-
H9 Elite Case1
-
120mm RGB Duo Fan3
-
120mm Quiet Airflow Fan (Case Version)1
-
RGB and Fan Controller1
-
Installation Accessories1
-
Manual1
More Videos
GPU Capacity
Fan Capacity
Radiator Capacity
Tech Specs
Key Specs
-
Motherboard Support:
Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:
Mid-Tower
-
Case Material:
SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
-
Height:
495mm (With Feet)
-
Width:
290mm
-
Depth:
466mm
-
Weight:
13.1 kg
Compatibility & Clearance
-
CPU Cooler Clearance:
Up to 165mm
-
GPU Clearance:
Up to 435mm
-
PSU Clearance:
200mm
-
Cable Management:
91mm
Front I/O Ports
-
USB 3.2 Gen 1 Type-A:
2
-
USB 3.2 Gen 2 Type-C:
1
-
Headset Audio Jack:
1
Expansion Slots
-
Standard:
7
-
Vertical:
0
Drive Bays
-
2.5":
4+2
-
3.5":
2
Fan Support
-
Side:
3 x 120mm
-
Top:
3 x 120mm / 2 x 140mm
-
Bottom:
3 x 120mm / 2 x 140mm
-
Rear:
1 x 120mm
-
Filters:
All Air Intakes
Radiator Support
-
Side:
Up to 360mm
-
Top:
Up to 360mm
-
Bottom:
Up to 360mm
-
Rear:
Up to 120mm
Fan Specs
-
Model:
F120Q (Case Version)
-
Speed:
1200 ± 240RPM
-
Airflow:
62.18 CFM
-
Static:
1.05 mm - H2O
-
Noise:
25.1 dBA
-
Fan Connector:
3-pin
Fan Specs
-
Model:
F120RGB Duo
-
Speed:
500 ± 1800RPM
-
Airflow:
48.58 CFM
-
Static:
2.42mm - H2O
-
Noise:
29 dBA
-
Fan Connector:
4-pin
General
-
Warranty:
2 Years
