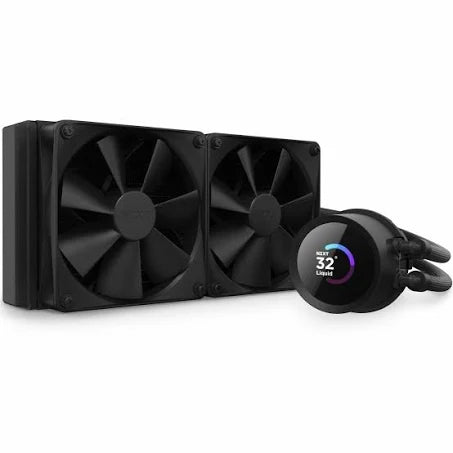

NZXT Kraken (NON RGB)
NZXT Kraken (NON RGB)
360MM Overview
Details
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
- Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images
- Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
- Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
- Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
- Includes F140P/F120P Static Pressure fans
- Single breakout cable simplifies installation
- Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
- Control custom screen content, pump speed, and zero-noise fan curves with NZXT CAM
Inside the Box
-
Kraken 3601
-
F120P fan3
-
Installation Accessories1
-
Breakout cable set1
Tech Specs
Cap
-
Material:Aluminum and plastic
-
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
-
Display Panel Active Area:1.54" (39.1mm)
-
Display Resolution:240 x 240 px
-
Display Brightness:300 cd/m²
-
Display Panel Type:Transmissive TFT, 262K color
Water Block
-
Dimensions:Diameter: 74.7mm H: 55.97mm
-
Material:Block: Copper Housing: Plastic
Pump
-
Motor Speed:800 - 2,800 ± 300RPM
-
Power:12V DC, 0.3A
Radiator
-
Dimensions:121 x 394 x 27mm
-
Material:Aluminum
Tube
-
Length:400mm
-
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Fan Specs
-
Model:F120P Static Pressure Fan
-
Quantity:3
-
Dimension:120 x 120 x 26mm
-
Speed:500-1,800 ± 180 RPM
-
Air Flow:21.67 - 78.02 CFM
-
Air Pressure:0.75 - 2.7mm-H2O
-
Noise:17.9 - 30.6dBA
-
Bearing:Fluid Dynamic Bearing
-
Power Consumption:12V DC, 0.23A, 2.76W
-
Connector:4-pin PWM
-
Life:60,000 hours / 6 Years
Compatible Socket & CPU
-
Intel:Intel Socket LGA 1700 & 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
-
AMD:AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
240MM Overview
Details
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
- Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images
- Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
- Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
- Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
- Includes F140P/F120P Static Pressure fans
- Single breakout cable simplifies installation
- Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
- Control custom screen content, pump speed, and zero-noise fan curves with NZXT CAM
Inside the Box
-
Kraken 2401
-
F120P Static Pressure Fan2
-
Installation accessories1
-
Breakout cable set1
Tech Specs
Cap
-
Material:Aluminum and plastic
-
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
-
Display Panel Active Area:1.54" (39.1mm)
-
Display Resolution:240 x 240 px
-
Display Brightness:300 cd/m²
-
Display Panel Type:Transmissive TFT, 262K color
Water Block
-
Dimensions:Diameter: 74.7mm H: 55.97mm
-
Material:Block: Copper, Housing: Plastic
Pump
-
Motor Speed:800 – 2,800 ± 300RPM
-
Power:12V DC, 0.3A
Radiator
-
Dimensions:123 x 275 x 30mm
-
Material:Aluminum
Tube
-
Length:400mm
-
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Fan(s)
-
Model:F120P Static Pressure Fan
-
Quantity:2
-
Dimension:120 x 120 x 26mm
-
Speed:500-1,800 ± 180 RPM
-
Air Flow:21.67 - 78.02 CFM
-
Air Pressure:0.75 - 2.7mm-H2O
-
Noise:17.9 - 30.6dBA
-
Bearing:Fluid Dynamic Bearing
-
Power Consumption:12V DC, 0.23A, 2.76W
-
Connector:4-pin PWM
-
Life:60,000 hours / 6 Years
-
Limited Warranty:-
Compatible Socket & CPU
-
Intel Socket:LGA 1700 & 1200/115X
-
Intel:Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
-
AMD Socket:AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)
-
AMD:Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
