SSUPD

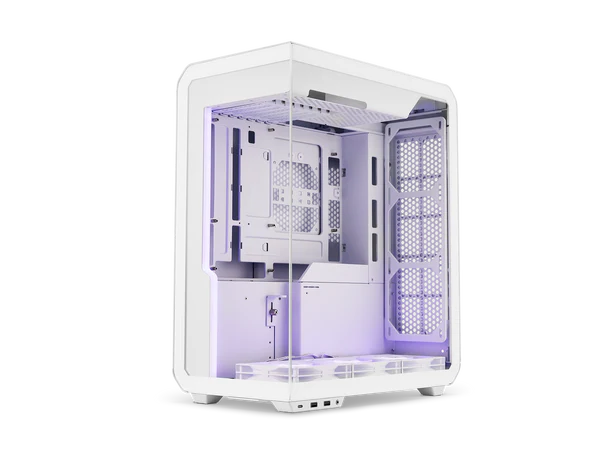

SSUPD XHUTTLE CASE White
SSUPD XHUTTLE CASE White
無法載入取貨服務供應情況
Specifications
Expansion slot
7
2.5" drive mounts
2
3.5" drive mounts
2
Tool-less push-to-lock
Left/Right side, top and front panels
Front I/O ports
2 x USB 3.0 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5mm audio & mic combo
Top I/O ports
1 x power button, 4 x LED control bottom
Fan support
Bottom: 3 x 120mm, Rear: 3 x 120mm, Side: 1 x 120mm, Top: 3 x 120mm with 2nd Slot GPU
Dust filters
Bottom, Rear, Side
Panels
2 x tempered glass, 1 x steel, 1 x plastic
Compatibility
Motherboard compatibility
ATX / Micro-ATX / Mini-ITX
Power supply type
ATX / SFX (ATX adapter bracket required)
Power supply max length
190mm
CPU cooler max height
170mm
GPU max length
370mm length and 160mm width
Radiator support
Bottom: 1 x 120/240/360mm, Rear: 1 x 120/240/360mm
General
Case dimensions
417 x 237 x 508 mm / 16.4 x 9.3 x 20 inch
Case dimensions (w/o feet)
417 x 237 x 493 mm / 16.4 x 9.3 x 19.4 inch
Package dimensions
565 x 309 x 495 mm / 22.24 x 12.17 x 19.17 inch
Net weight
10.67 Kg / 23.5 lb
Gross weight
12.85 Kg / 28.3 lb
Volume
50 liters
Package contents
Case, accessory box, user manual
Warranty
2 years
