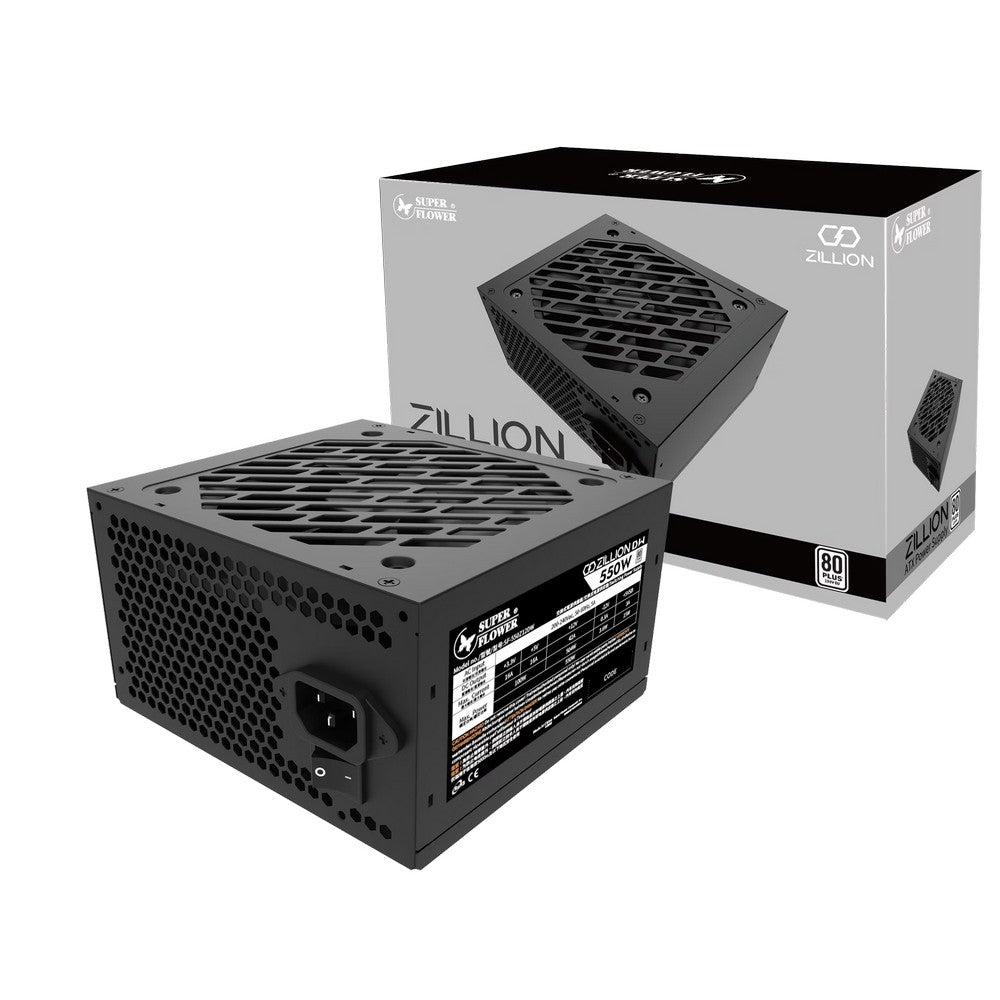

Super Flower Zillion DW 550W 80 plus White
Super Flower Zillion DW 550W 80 plus White
TAGS: 80 plus white
Model |
Zillion DW White 550W |
|
Wattage |
550W |
|
Efficiency |
20%: 82% ; 50% : 85% ; 100% : 82% (230V EU Internal White) |
|
Intel Power Design Guide |
ATX 12V v2.3, EPS 12V v2.92 Specification. |
|
AC Input / Frequency |
200V~240V | 50-60Hz |
|
Fan Size |
120mm HDB Fan |
|
Dimension |
140mm(L) x |
|
Protection |
OVP / SCP / OPP / NLP |
|
Safety |
TÜV / CB / CE / RoHS |
|
Weight |
Around 1.5 KG |
|
Cable Spec |
||
20+4Pin |
Fixed Cables |
1 (500 mm) |
8Pin & (4+4Pin) CPU |
1 (600mm+150mm) |
|
SLI (2 x PCI 6+2pin) |
1 (500mm+150mm) |
|
2SATA + 1PATA |
2 (450mm+150mm+150mm) |
|
Features |
||
Features ★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards. ★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card. ★80 PLUS® White Certified, 82% 85% 82% Efficiency At 20% 50% 100% Rated Load. ★Comply With ATX 12V v2.3, EPS 12V v2.92 Specification. ★PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement. ★OVP / SCP / OPP / NLP ★All Flat Cables. ★105°C Taiwanese Main Capacitor. |
Model no.: SF-550Z12DW |
||||||
AC INPUT |
200-240V~ 5A 50-60Hz | |||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
550W |
Max Output Current |
16A |
16A |
42A |
0.3A |
3.0A |
Max Combined Wattage |
100W |
504W |
3.6W |
15W |
||
550W |
