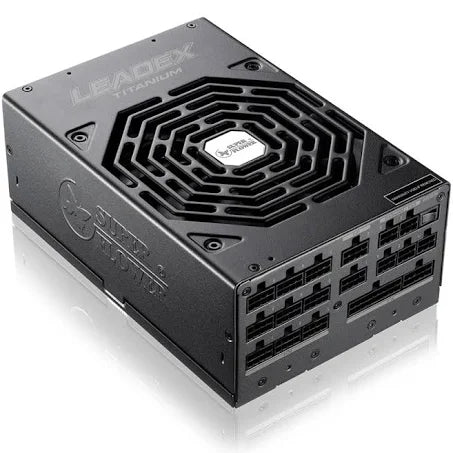

Super Flower Leadex Titanium 1600W ATX3.1 PCIe5.1 80 plus Titanium

Model No.

SF-1600F14HT

Wattage

1600W

80+ Efficiency

10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium)

Intel Power Design Guide

V2.92

AC Input / Frequency

100-240V | 60 / 50Hz

Fan Size

140mm Two-Ball Bearing Fan

Dimension

220mm(L) x 150mm(W) x 86mm(H)

Protection

OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP

Safety

cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC

Temprature

Passed 50℃ Hot Testing

Cable Spec

20+4Pin

Detachable Cables

One cable (600mm)

8 (4+4) Pin CPU

Two cables (750mm)

PCI-E 6+2Pin

Four cables (750mm)

SLI (2 x PCI 6+2Pin)

Five cables (750+150mm)

4SATA

Three cables (550+100+100+1000mm)

2SATA+2Molex

One cable (550+100+100+100mm)

3Molex

One cable (550+100+100mm)

Molex to FDD Adapter

Two cables (100mm)
