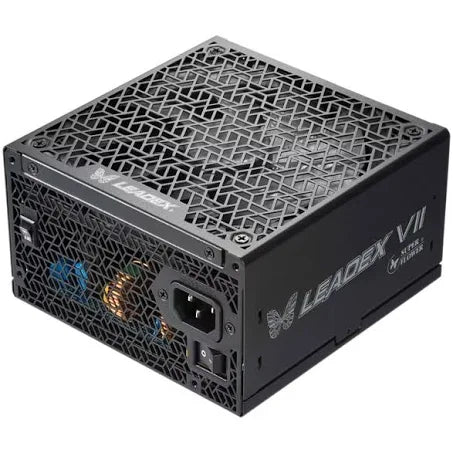

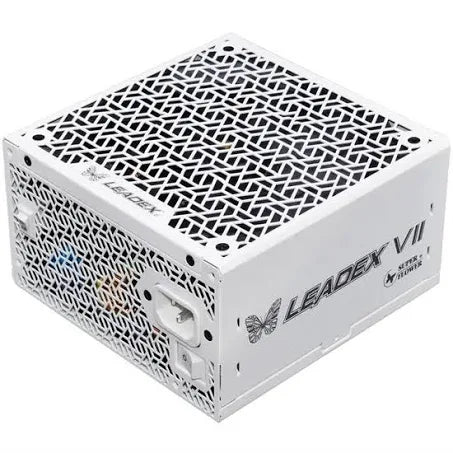

Super Flower Leadex VII Platinum Pro 1000W ATX3.1 PCIe5.1 80 plus Platinum

Model No.:

SF- 1000F14XP

Transform Efficiency

20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency

Cybernetics Certified

Efficiency: Platinum  /  Efficiency 230V: Platinum

Intel Power Design Guide

EPS Ver. 2.92 & ATX 3.1

AC Input | Frequency

100V-240V | 60 / 50Hz , Full Range APFC

Fan Size

14cm FDB FAN

Dimension

150mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP

Safety Certificates

cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC

Temperature

Passed 50℃ Hot Testing

Cable Wires

20+4 Pin

Detachable

One Cable (600mm)

8(4+4) Pin CPU

Two Cables (700mm)

PCI 6+2 Pin

Four Cables (700mm)

4 SATA

Three Cables (550+130+130+130mm)

4 Molex

One Cable (550+150+150+150mm)

PCIe 12+4 Pin

One Cable (700mm)

model no.: SF-1000F14XP

AC INPUT

100-240V~  15A  60Hz/50Hz

200-240V~  10A  60Hz/50Hz (Only for China/Korea)

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

1000W

Max Output Current

20A

20A

83.3A

0.5A

2.5A

Max Combined Wattage

100W

999.6W

6W

12.5W

1000W
