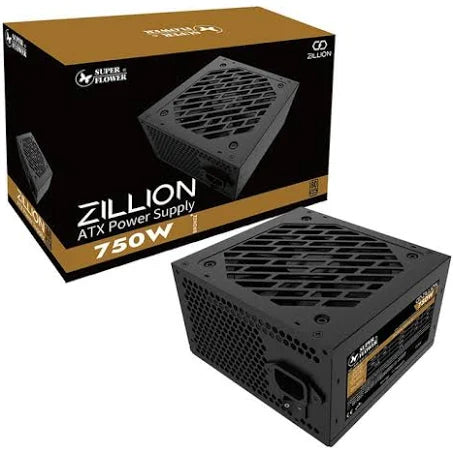

Super Flower Zillion DB Bronze 750W ATX 3.1 80 plus Bronze

Model

Zillion DB Bronze 750W ATX3.1

Wattage

750W

Efficiency

20%: 85% ; 50% : 88% ; 100% : 85% (115V Internal Bronze)

Intel Power Design Guide

ATX 12V v3.1, EPS 12V v2.92 Specification

AC Input / Frequency

100V~240V | 50-60Hz

Fan Size

120mm Sleeve Fan

Dimension

140mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OTP / SCP / OPP / NLP

Safety

TÜV / CB / CE / RoHS / FCC

Weight

Around 1.5 KG

Cable Spec

20+4Pin

Fixed Cables

1 (600 mm)

8Pin & (4+4Pin) CPU

2 (650 mm)

SLI (2 x PCI 6+2pin)

2 (600mm+150mm)

4SATA

2 (600mm+150mm+150mm+150mm)

3PATA+FDD

1 (600mm+150mm+150mm+150mm)

12VHPWR

1 (600 mm)
