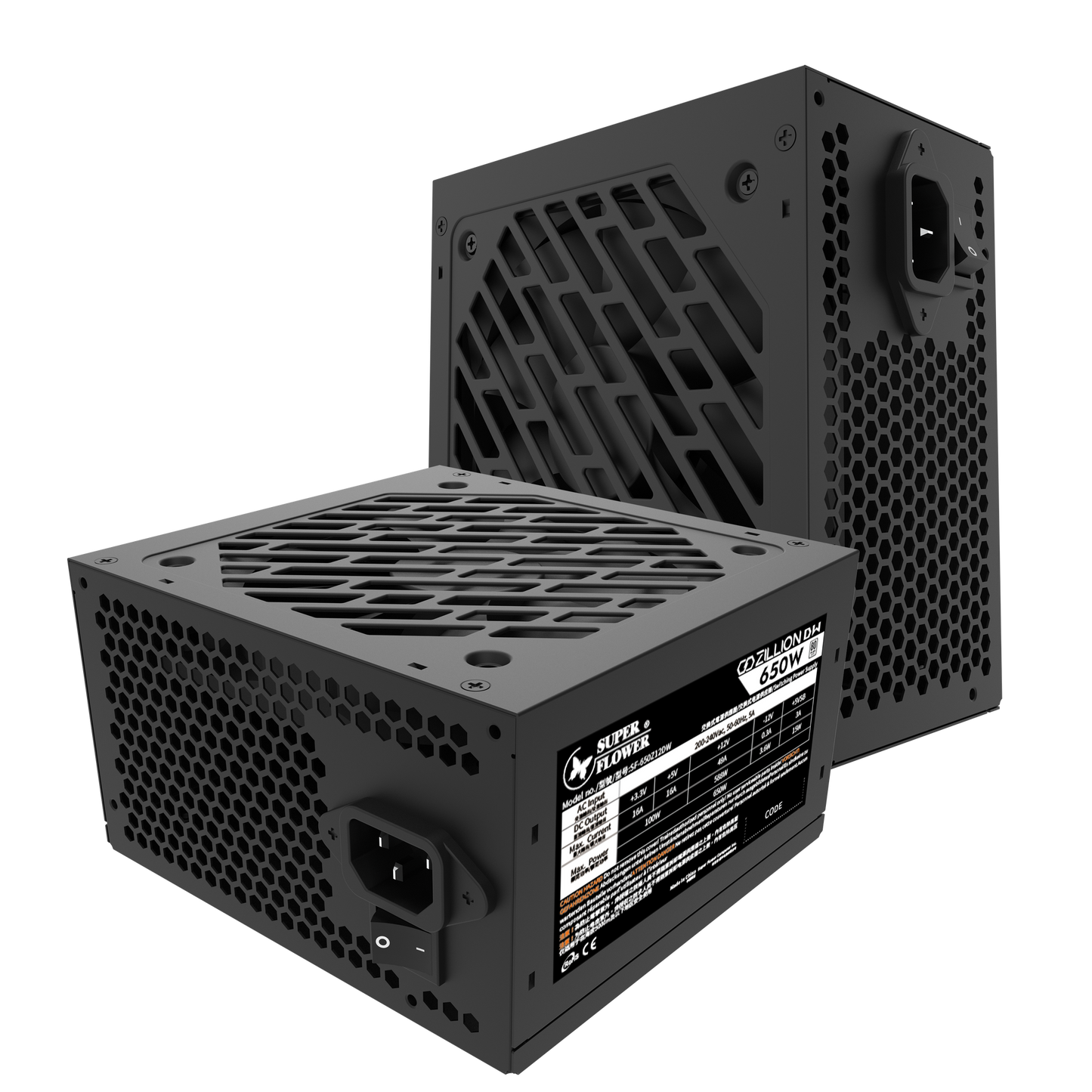

Super Flower Zillion DW White 650W 80 plus White

Model

Zillion DW Bronze 650W

Wattage

650W

Efficiency

20%: 82% ; 50% : 85% ; 100% : 82% (230V EU Internal White)

Intel Power Design Guide

ATX 12V v2.3, EPS 12V v2.92 Specification.

AC Input / Frequency

200V~240V | 50-60Hz

Fan Size

120mm HDB Fan

Dimension

140mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / SCP / OPP / NLP

Safety

TÜV / CB / CE / RoHS

Weight

Around 1.5 KG

Cable Spec

20+4Pin

Fixed Cables

1 (500 mm)

8Pin & (4+4Pin) CPU

2 (600mm+150mm)

SLI (2 x PCI 6+2pin)

1 (500mm+150mm)

2SATA + 2PATA

1 (450mm+150mm+150mm+150mm)

2SATA + 1PATA

1 (450mm+150mm+150mm)
